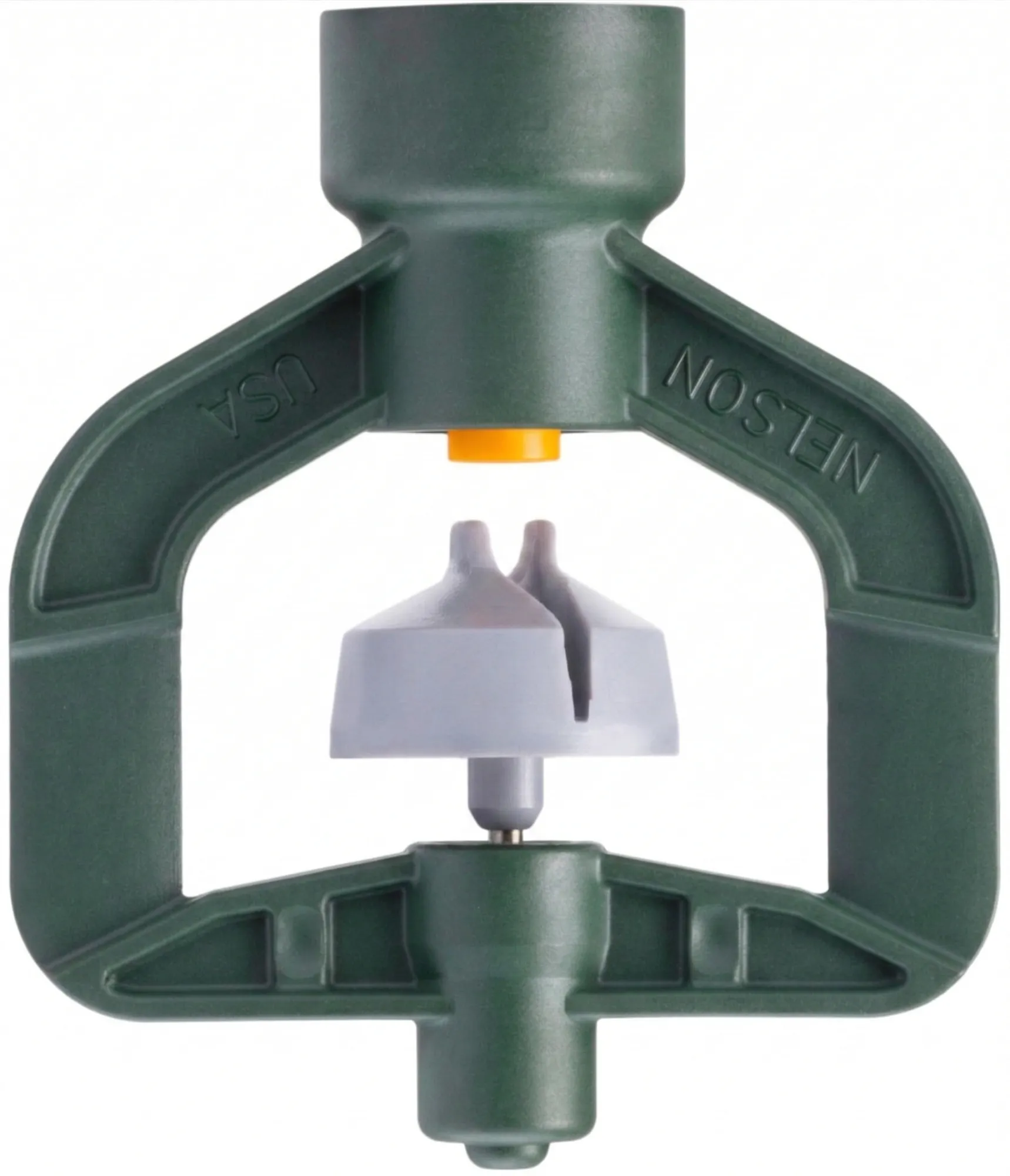

The Gray plate for the S10 is a flat trajectory plate for the greenhouse, nursery and arena applications. The Gray S10 plate can be used only in the inverted orientation. With 2 fast spinning and flat-trajectory streams, the Gray plate allows the S10 to achieve the widest wetted pattern available in any inverted S10 Spinner plate. When inverted, the S10 with Gray plate can be hung on a flexible drop tube.
Flow: 0.79-5 gpm (187-1144 lph)
Pressure: 20-50 psi (1.5-3.5 bar)
Radius: 16-18 ft (4.9-5.5 m)
Nozzle Size: #10-20 2TN
With its high-flow capacity, high uniformity, and greater radius you will need far less S10 Spinners than traditionally needed in similar applications. Space the S10 from 16 x 16 to 26 x 26 feet (5 x 5 to 8 x 8 meters) depending on your conditions. Closer spacings will normally deliver the best uniformity, especially in the wind. Three plate options are available for high trajectory, low trajectory, or flat trajectory performance.
