Leeson 5-7 HP 1 Phase 3600 RPM 230 Volts 182TZ Frame 1 1/8

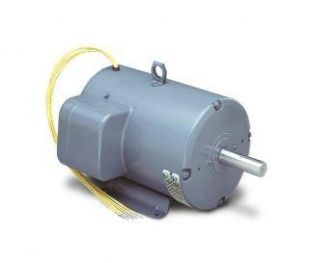

Leeson 5-7 HP 1 Phase 3600 RPM 230 Volts 182TZ Frame 1 1/8" Shaft Size Crop Dryer Motor

SKU:

131847

|

Brand:

DPP
$521.14

Low Price Guarantee

We price-match our competitors!

Easy Returns

No restocking fee for 30 days!


Description









































































































































































































































































Volts230VoltsVolts
F.L. Amps27.2-35F.L. AmpsF.L. Amps
S. F AmpsS. F AmpsS. F Amps



RPM3600Hertz60
HP5-7DutyAIROVERTYPECD
KW
Frame182TZServ. Factor1.0Phase1
Max Amb40DesignNO DESIGN CODECodeJ
Insul ClassFProtectionAUTOMATICTherm.Prot.9700K66
Eff 100%78.5Eff 75%PF82.5
ULY-(LEESON UL REC)CSAYesBearing OPE6205
CC NumberEXEMPTCENoBearing PE6206
Load TypeInverter TypeSpeed RangeNONE



Motor Wt.94 LBEnclosureDPLubricationPOLYREX EM
Nameplate081285MountingRIGIDRotationSELECTIVE CCW
Assembly 180-007 Shaft Dia.1 1/8 INExt. Diag. 005033.09
Cust Part NoOutline 035732-1150 Ext. Diag2
PackagingBOutline Dash NoWindingC8213
Carton LabelLeeson Farm DutyGROUP :2
IrisPaintGRAY - LIGHT (EPOXY)Test Card01



Form FactorRMS AmpsConst Torque Speed Range
TorquePeak
AB CodePeak@DegC
Resistance
Connection



Rework StatusRework TYPE



Hazardous LocNONEBrake Motors
Explosion ProofTemp Op CodeFORCE
ClassGROUP :VDC
ClassGROUP :ADC
Brake Coil OHMs @25 C















































Performance
Torque UOMLB-FTInertia (WK_)0
Torque7.5(Full Load)25.8(Break Down)25.8(Pull Up)24.5(Locked Rotor)
CURRENT (amps)27.2(Full Load)0(Break Down)0(Pull Up)238(Locked Rotor)
Efficiency (%)0(Full Load)75.6(75% Load)73.6(50% Load)61.8(25% Load)
PowerFactor0(Full Load)88(75% Load)57(50% Load)39(25% Load)
