Leeson 15 HP 3 Phase 1800 RPM 208/230 Volts 254T Frame 1 5/8

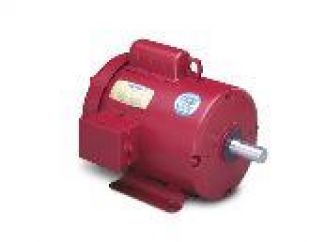

Leeson 15 HP 3 Phase 1800 RPM 208/230 Volts 254T Frame 1 5/8" Shaft Crop Unload Auger Motor

SKU:

170066.6

|

Brand:

DPP
$1549.24

Low Price Guarantee

We price-match our competitors!

Easy Returns

No restocking fee for 30 days!


Description

C254T17FB10C








































































































































































































































































Volts208-230Volts460Volts190/380
F.L. Amps39-37F.L. Amps18.5F.L. Amps30.5/15.3
S. F Amps44-42S. F Amps21S. F Amps34.5/17.3



RPM1800Hertz60/50
HP15DutyCONTINUOUSTYPETF
KW11.2
Frame254TServ. Factor1.15Phase3
Max Amb40DesignBCodeH
Insul ClassFProtectionNOTTherm.Prot.
Eff 100%92.4Eff 75%PF82.5
ULYesCSAYesBearing OPE6308
CC NumberCC005ACEYesBearing PE6309
Load TypeInverter TypeSpeed RangeNONE



Motor Wt.290 LBEnclosureTEFCLubricationSTANDARD
Nameplate081023MountingRIGIDRotationREV
AssemblyShaft Dia.Ext. Diag. 004172.01
Cust Part NoOutline 16953860 Ext. Diag2
Packaging307997.99Outline Dash NoWindingT12904005
Carton LabelINDIVIDUALGROUP :1
IrisPaintVERIFYTest Card



Form FactorRMS AmpsConst Torque Speed Range
TorquePeak
AB CodePeak@DegC
Resistance
Connection



Rework StatusRework TYPE



Hazardous LocNONEBrake Motors
Explosion ProofTemp Op CodeFORCE
ClassGROUP :VDC
ClassGROUP :ADC
Brake Coil OHMs @25 C















































Performance
Torque UOMInertia (WK_)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor













































































































Load Curve Data @60/50 Hz , 380 Volts , 15 Horsepower
LoadAmpsKW2RPMTorqueEFFPFRise By ResisFrame Rise
0.08.00.3818000.00.06.00.0-
0.259.33.2179411.086.543.50.0-
0.511.56.1178822.091.767.50.0-
0.7514.69.1178033.292.478.00.0-
1.018.512.1177544.492.482.545.0-
1.1521.014.0177051.391.784.060.0-
1.2522.515.2176555.791.784.50.0-
1.527.118.42176067.291.085.50.0-


SOURCE
CALCULATED
GROUP
1
